Harvey Tool HARV 49008-C3

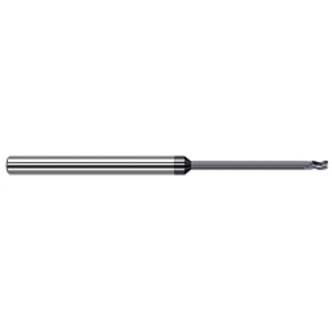

Harvey Tool 49008-C3 Center Cut Stub Length Miniature End Mill, 0.125 in Dia Cutter, 3/16 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 3 in OAL, AlTiN
Invoice description:
Em 1/8x3/16x1/8x3 Sq 3fl 1-7/8lbs Altin
Manufacturer PN: 49008-C3
Factory Order
--Price Unavailable--
Harvey Tool, 49008-C3, Miniature End Mill, Center Cut Stub Length, 0.125 in Diameter Cutter, 3 in Overall Length, 3/16 in Length of Cut, 3 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Long length design for deep cavities, up to 10 in overall length
- Stub flute for maximum rigidity
- Reduced neck diameter to avoid heeling
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 1.8750 in (1-7/8)
- Reach Multiple (15x)
- Profile Square
Specifications
Cutter Diameter0.125 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeHelical
Helix Angle30 deg
Length of Cut3/16 in
MaterialSolid Carbide
Number of Flutes3
Overall Length3 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
