Corehog COREHOG C39173

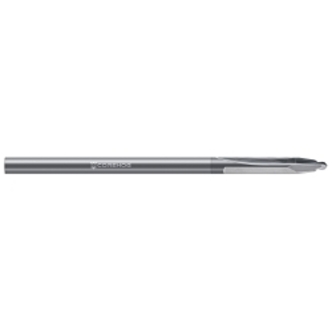

Corehog C39173 CFRP Drills, #7 Drill - Wire, 5.105 mm Drill - Metric, 0.201 in Drill - Decimal Inch, (2) Flutes
Invoice description:
.201 D X 1" Lof X 4" Oal Cfrp Drill Cvd Coated
Manufacturer PN: C39173
$154.10 EACH
Factory OrderEstimated to ship in 7 days
Corehog, C39173, Drills, CFRP, Imperial, #7 Drill - Wire, 5.105 mm Drill - Metric, 0.201 in Drill - Decimal Inch, 4 in Overall Length, 2 Flutes, Helical Flute, 1 in Flute Length, 0.201 in Shank, Cylindrical Shank, 114 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Applicable Materials: Hardened Materials, Through Coolant (Yes/No): No, CVD Diamond
Features
- Provides superior results in CFRP while delivering excellent performance in other laminate and stack composite materials
- Specially engineered geometry allows for outstanding tool life, finish and repeatability while eliminating edge swelling, tear out and delamination
- Designed with high strength and rigidity while maintaining tight tolerance
- True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
- Solid Carbide
Specifications
ApplicationIdeal choice for hand drilling composites in assembly applications, use in a wide range of composites
Applicable MaterialsHardened Materials
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.201 in
Drill Size - Metric5.105 mm
Drill Size - Wire#7
FinishCVD Diamond
Flute Length1 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes2
Overall Length4 in
Point Angle114 deg
Point TypeDrill
Shank Size0.201 in
Shank TypeCylindrical
Through Coolant (Yes/No)No
TypeCFRP
Additional Information
Country of OriginUS
