Sandvik Coromant SANC 7080773

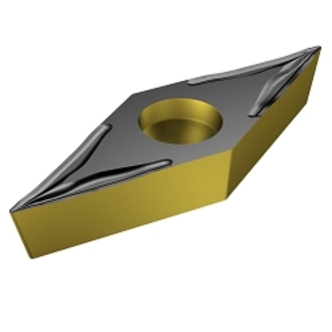

Sandvik Coromant 7080773 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: VBMT 331-UR 4335, VBMT Insert, Material Grade: P, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide
Invoice description:
Ins Vbmt 331-ur 4335
Factory Order
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VBMT Insert, 331 Insert, Rhombic, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 16 Seat, Positive Rake, UR Chipbreaker, 0.016 in Corner Radius, Manufacturers Grade: 4335, ANSI Code: VBMT 331-UR 4335, ISO Code: VBMT 16 04 04-UR 4335, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
Features
- Unobstructed chip flow
- Excellent chip control
- Exceptional surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
Specifications
ApplicationRoughing Applications
ANSI CodeVBMT 331-UR 4335
ChipbreakerUR
Corner Radius0.016 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnSteel
Included Angle35 deg
Inscribed Circle3/8 in
Insert Size331
Insert StyleVBMT
ISO CodeVBMT 16 04 04-UR 4335
Manufacturers Grade4335
MaterialCarbide
Material GradeP
Maximum Depth of Cut2 mm
RakePositive
Relief Angle5 deg
Seat Size16
SeriesCoroTurn 107
ShapeRhombic
Thickness0.187 in
Type1-Sided Basic Shape
Additional Information
Standards/ApprovalISO Certified
Country of OriginJP
