Sandvik Coromant SANC 6532291

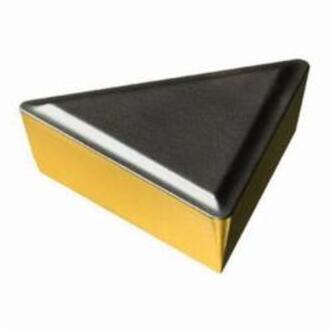

Sandvik Coromant 6532291 T-Max S 1-Sided Turning Insert, ANSI Code: TPMR 432 4325, TPMR Insert, Material Grade: K, P, 432 Insert, Triangular Shape, 22 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
Invoice description:
Insert Tpmr432 4325
Factory Order
Sandvik Coromant Turning Insert, 1-Sided, Series: T-Max S, TPMR Insert, 432 Insert, Triangular, 0.157 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.866 in Length, 22 Seat, Positive Rake, 53 Chipbreaker, 0.0312 in Corner Radius, Manufacturers Grade: 4325, ANSI Code: TPMR 432 4325, ISO Code: TPMR 22 04 08 4325, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Specifications
ApplicationFinishing Applications
ANSI CodeTPMR 432 4325
Chipbreaker53
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Included Angle60 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleTPMR
ISO CodeTPMR 22 04 08 4325
Length0.866 in
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut0.157 in
RakePositive
Relief Angle11 deg
Seat Size22
SeriesT-Max S
ShapeTriangular
Thickness0.1874 in
Type1-Sided
Additional Information
Country of OriginIN
Sds
