GARR GARR 30728

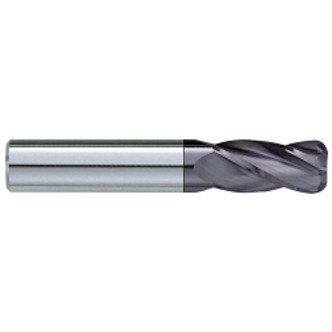

GARR 30728 170RA Center Cutting Stub Length Corner Radius End Mill, 3/16 in Dia Cutter, 0.01 in Corner Radius, 3/8 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated

Invoice description: Em 3/16x3/8x3/16x2 .01r 4fl Tialn

UNSPSC: 27112803
Manufacturer PN: 30728
$18.84 EA
In stock (2)
QTY:


GARR Corner Radius End Mill, Center Cutting Stub Length, Series: 170RA, 3/16 in Diameter Cutter, 0.01 in Corner Radius, 2 in Overall Length, 3/8 in Length of Cut, 4 Flutes, 3/16 in Shank Diameter, 30 deg Helix Angle, Solid Submicron Grain Carbide, TiAlN Coated

  • Features

  • Radius tolerance 0.001 to -0.001 in (0.025 to -0.025 mm)
  • Shorter flute length for rigidity
  • Up to 40% faster than uncoated
  • Dry or semi-dry machining
  • Extremely versatile

Specifications

ApplicationFor stronger corners and part radius
Corner Radius0.01 in
Cutter Diameter3/16 in
FinishTiAlN Coated
Helix Angle30 deg
Length of Cut3/8 in
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length2 in
Series170RA
Shank Diameter3/16 in
TypeCenter Cutting Stub Length

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer
Country of OriginUS
