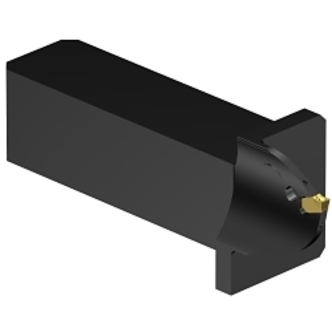

Sandvik Coromant SANC 7192454

Sandvik Coromant Indexable Grooving Toolholder, Series: CoroCut QF, Insert Compatibility: QFU-G-0300-03-TF, QFU-LFG080C16 Toolholder, 29.92 mm Head Length, 113.92 mm Overall Length, Rectangle Shank, 25.4 mm H x 25.4 mm W Shank, G Insert Seat, Left Hand Cutting Direction, 42 mm Diameter Maximum Workpiece, 30 mm Diameter Minimum Hole, Yes Through Coolant

• Features

• More material in the weakest cross section and decreased mass in the front part of the blade provide higher dynamic stiffness, effectively reducing vibration
• The slit is optimized to provide correct clamping force
• Tilted insert with stabilizing rails at the top, bottom and back of the insert to minimize insert movement
• Improves chip evacuation and decreases the risk for chip jamming, critical factors for successful deep face grooving operations
• Effective from low to high coolant pressures
• CoroTurn SL cutting heads for face grooving
• Modular, extremely robust serration lock (SL) interface
• The SL heads have axial mounting for increased stability and rigidity
• Use with damped silent Tools boring bars for increased accessibility, process security and groove quality
• Easy insert changing, always providing the correct clamping force

Specifications

Additional Information

Documents

• Specification Sheet
