Sandvik Coromant SANC 7884351

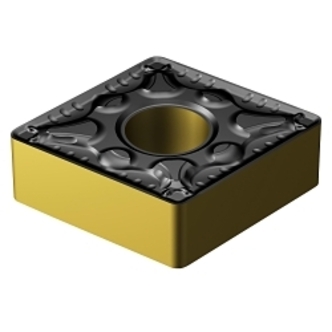

Sandvik Coromant 7884351 T-Max P Turning Insert, ANSI Code: CNMG 432-PM 4425, CNMG Insert, 432 Insert, Diamond Shape, Left/Right Hand Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4425
Invoice description:
Cnmg 432-pm 4425 Insert For Turning Loc 10066187
In stock
(4)
Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 432 Insert, Diamond Shape, 5.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.476217 in Length, Double-Sided PM Chipbreaker, 0.031252 in Corner Radius, >50 mm Diameter Hole, Manufacturers Grade: 4425, ANSI Code: CNMG 432-PM 4425, ISO Code: CNMG 12 04 08-PM 4425, 80 deg Included Angle, 0 deg Relief Angle, Left/Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, For Use On: Cast Iron and Steel
Features
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Inserts dedicated for precision coolant
- Roughing to finishing operation
- 0.5 to 5.5 mm depth of cut for cast iron and steel
- Four cutting edges
- False wiper edge property
Specifications
ApplicationTurning and General Applications
ANSI CodeCNMG 432-PM 4425
ChipbreakerDouble-Sided PM
Corner Radius0.031252 in
Cutting DirectionLeft/Right Hand
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter>50 mm
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 12 04 08-PM 4425
Length0.476217 in
Manufacturers Grade4425
MaterialCarbide
Maximum Depth of Cut5.5 mm
Relief Angle0 deg
SeriesT-Max P
ShapeDiamond
Thickness3/16 in
Additional Information
Standards/ApprovalPROP65: This product contains Carbide chemicals kn
Country of OriginSE
