Sandvik Coromant SANC 8019377

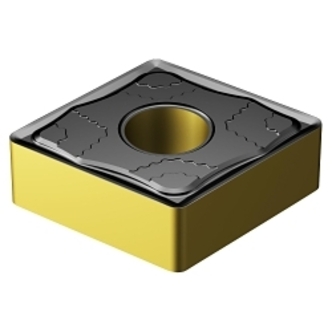

Sandvik Coromant 8019377 T-Max P 4-Cutting Edge Turning Insert, ANSI Code: CNMG 432-PMC 4425, CNMG Insert, Material Grade: K, P, 432 Insert, Diamond Shape, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4425
Invoice description:
Ins Cnmg 432-pmc 4425
Factory Order
Sandvik Coromant Turning Insert, 4-Cutting Edge, Series: T-Max P, CNMG Insert, 432 Insert, Diamond Shape, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.4762 in Length, PMC Chipbreaker, 0.0312 in Corner Radius, Manufacturers Grade: 4425, ANSI Code: CNMG 432-PMC 4425, ISO Code: CNMG 12 04 08-PMC 4425, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent tools
- Stable and secure clamping
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
Specifications
ApplicationFor longitudinal turning, face turning, profiling, roughing to finishing and medium applications
ANSI CodeCNMG 432-PMC 4425
ChipbreakerPMC
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleCNMG
ISO CodeCNMG 12 04 08-PMC 4425
Length0.4762 in
Manufacturers Grade4425
MaterialCarbide
Material GradeK, P
Relief Angle0 deg
SeriesT-Max P
ShapeDiamond
Thickness3/16 in
Type4-Cutting Edge
Additional Information
Standards/ApprovalPROP65: This product contains Carbide chemicals kn
Country of OriginSE
