Harvey Tool HARV 881148-C6

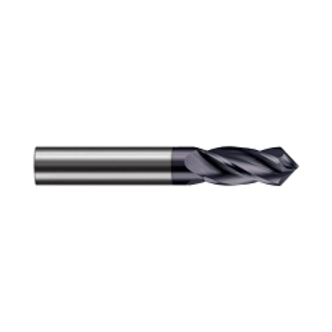

Harvey Tool 881148-C6 Variable Helix Drill/End Mill, 3/4 in Dia, 90 deg Point Angle, (4) Flutes, 1-1/2 in L Flute, 1-1/2 in Length of Cut, 3/4 in Dia Shank, 4 in OAL, AlTiN Nano
Invoice description:
Drill/mill 3/4x1-1/2x3/4 4"oal 90deg
Manufacturer PN: 881148-C6
$351.80 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 881148-C6, Drill/End Mill, Variable Helix, 3/4 in Diameter, 4 in Overall Length, 1-1/2 in Flute Length, 4 Flutes, Helical Flute, 3/4 in Shank Diameter, Cylindrical Shank, 1-1/2 in Length of Cut, 90 deg Point, Mill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, AlTiN Nano, Applicable Materials: Cast Iron/Steel/Stainless Steel/Hardened Alloys
Features
- Specialized helically fluted tip design for superior performance, surface finish, and chip evacuation
- Variable helix design on OD (approx. 35) reduces chatter and harmonics and increases material removal rates
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Cutter Diameter 0.7500 in (3/4)
- Web Thickness 0.0150 in (1/64)
Specifications
ApplicationDesigned for Chamfering, Milling and Some Spotting Applications
Applicable MaterialsCast Iron/Steel/Stainless Steel/Hardened Alloys
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Diameter3/4 in
FinishAlTiN Nano
Flute Length1-1/2 in
Flute TypeHelical
Length of Cut1-1/2 in
MaterialSolid Carbide
Number of Flutes4
Overall Length4 in
Point Angle90 deg
Point TypeMill
Shank Diameter3/4 in
Shank TypeCylindrical
TypeVariable Helix
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
