Sandvik Coromant SANC 5915113

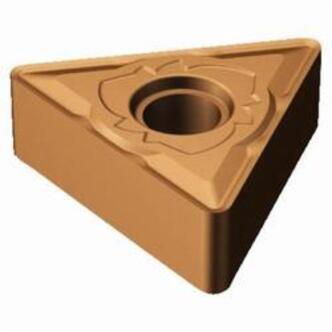

Sandvik Coromant 5915113 T-Max P Basic Shape Turning Insert, ANSI Code: TNMG 432-SM 1125, TNMG Insert, Material Grade: M, S, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Heat-Resistant Super Alloys and Stainless Steel
Invoice description:
Ins Tnmg 432-sm 1125
Factory Order
Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max P, TNMG Insert, 432 Insert, Triangular, 0.118 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.866 in Length, 22 Seat, Negative Rake, SM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 1125, ANSI Code: TNMG 432-SM 1125, ISO Code: TNMG 22 04 08-SM 1125, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S, For Use On: Heat-Resistant Super Alloys and Stainless Steel
Specifications
ApplicationMedium Applications
ANSI CodeTNMG 432-SM 1125
ChipbreakerSM
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishPVD-TiAlN+AlCr2O3 Coated
For Use OnHeat-Resistant Super Alloys and Stainless Steel
Hole Diameter0.2029 in
Included Angle60 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleTNMG
ISO CodeTNMG 22 04 08-SM 1125
Length0.866 in
Manufacturers Grade1125
MaterialCarbide
Material GradeM, S
Maximum Depth of Cut0.118 in
RakeNegative
Relief Angle0 deg
Seat Size22
SeriesT-Max P
ShapeTriangular
Thickness0.187 in
TypeBasic Shape
Additional Information
Country of OriginSE
