Sandvik Coromant SANC 5751746

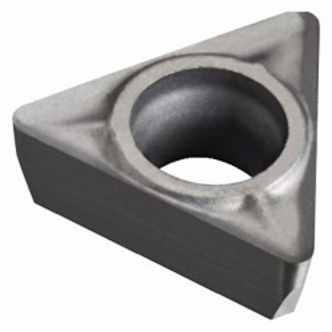

Sandvik Coromant 5751746 CoroTurn 107 Turning Insert, ANSI Code: TCGX 221-AL H10, TCGX Insert, Material Grade: N, S, 221 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: H10
Invoice description:
Ins Tcgx 221-al H10
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCGX Insert, 221 Insert, Triangular, 5 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 11 Seat, Positive Rake, AL Chipbreaker, 0.016 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: H10, ANSI Code: TCGX 221-AL H10, ISO Code: TCGX 11 03 04-AL H10, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, S, For Use On: Non-Ferrous Metals, Heat-Resistant Super Alloys and Titanium
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationMedium Machining Applications
ANSI CodeTCGX 221-AL H10
ChipbreakerAL
Corner Radius0.016 in
Cutting DirectionNeutral
FinishUncoated
For Use OnNon-Ferrous Metals, Heat-Resistant Super Alloys and Titanium
Hole Diameter0.1102 in
Included Angle60 deg
Inscribed Circle1/4 in
Insert Size221
Insert StyleTCGX
ISO CodeTCGX 11 03 04-AL H10
Manufacturers GradeH10
MaterialCarbide
Material GradeN, S
Maximum Depth of Cut5 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesCoroTurn 107
ShapeTriangular
Thickness1/8 in
Additional Information
Country of OriginSE
