Sandvik Coromant SANC 6434042

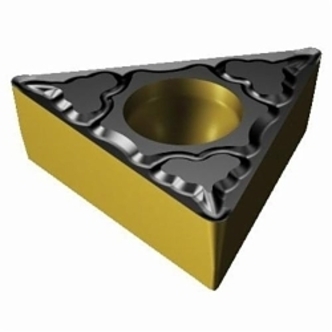

Sandvik Coromant 6434042 CoroTurn 107 Turning Insert, ANSI Code: TCMT 3(2.5)2-PM 4325, TCMT Insert, Material Grade: K, P, 3(2.5)2 Insert, Triangular Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
Invoice description:
Ins Tcmt 3(2.5)2-pm 4325
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCMT Insert, 3(2.5)2 Insert, Triangular, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 16 Seat, Positive Rake, PM Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TCMT 3(2.5)2-PM 4325, ISO Code: TCMT 16 T3 08-PM 4325, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationMedium Machining Applications
ANSI CodeTCMT 3(2.5)2-PM 4325
ChipbreakerPM
Corner Radius0.031 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.1732 in
Included Angle60 deg
Inscribed Circle3/8 in
Insert Size3(2.5)2
Insert StyleTCMT
ISO CodeTCMT 16 T3 08-PM 4325
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size16
SeriesCoroTurn 107
ShapeTriangular
Thickness0.156 in
Additional Information
Country of OriginSE
