Harvey Tool HARV 768031

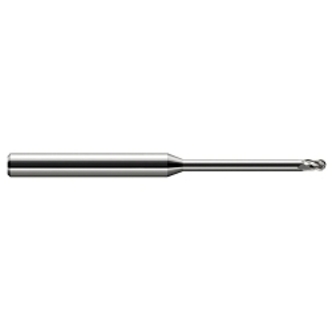

Harvey Tool 768031 Center Cut Stub Length Miniature End Mill, 0.031 in Dia Cutter, 3/64 in Length of Cut, (4) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, Uncoated
Invoice description:
Bem 1/32x3/64x3/8x2-1/2 4fl
Manufacturer PN: 768031
Factory Order
--Price Unavailable--
Harvey Tool, 768031, Miniature End Mill, Center Cut Stub Length, 0.031 in Diameter Cutter, 2-1/2 in Overall Length, 3/64 in Length of Cut, 4 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
Features
- Long length design for deep cavities, up to 8 in overall length
- Stub flute for maximum rigidity
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.3750 in (3/8)
- Reach Multiple (12x)
- Profile Ball
Specifications
Cutter Diameter0.031 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeUpcut
Helix Angle30 deg
Length of Cut3/64 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Country of OriginUS
Catalog
