Sandvik Coromant SANC 5729318

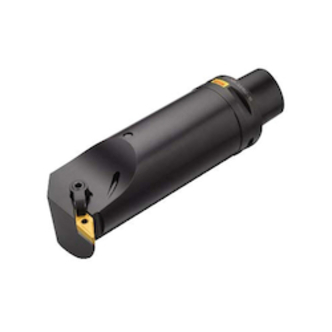

Sandvik Coromant 5729318 T-Max P Turning Cutting Unit With Internal Coolant, C6 System, 175 mm L Head/Projection, Right Hand Cutting, Insert Compatibility: VNMG 160408, 213 mm OAL, Internal
Invoice description:
C6-mvunr-35175-16 C6 175mm Head Lgth Vnmg Ins
Factory Order
Sandvik Coromant Turning Cutting Unit, Series: T-Max P, System Size: C6, 175 mm Head Length/Projection, 213 mm Overall Length, VNMG Insert, Insert Compatibility: VNMG 160408, Right Hand Cutting Direction, 35 mm Center to Cutting Edge, Screw/Top Clamp Insert Holding Method, 152 mm Center to Cutting Height, Internal, Steel
Features
- Stable and secure clamping
- Chip control and process security
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools
Specifications
ApplicationFor general turning, ranging from medium to large components
Center to Cutting Edge35 mm
Center to Cutting Height152 mm
Cutting DirectionRight Hand
Head Length/Projection175 mm
Insert CompatibilityVNMG 160408
Insert Holding MethodScrew/Top Clamp
Insert StyleVNMG
Internal or ExternalInternal
MaterialSteel
Overall Length213 mm
SeriesT-Max P
System SizeC6
Additional Information
Includes5735760 Clamping Screw, 5736126 Shim, 5736337 Clamp, 5736444 Locking Pin, 5757315 and 5758323 Keys
Country of OriginUS
