Sandvik Coromant SANC 5754692

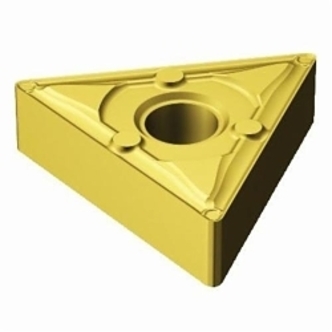

Sandvik Coromant 5754692 T-Max P Turning Insert, ANSI Code: TNMX 331-WF 1525, TNMX Insert, Material Grade: K, M, P, 331 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Stainless Steel and Steel, Carbide
Invoice description:
Insert Tnmx331-wf 1525
Factory Order
Sandvik Coromant Turning Insert, Series: T-Max P, TNMX Insert, 331 Insert, Triangular, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6495 in Length, 16 Seat, Negative Rake, WF Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 1525, ANSI Code: TNMX 331-WF 1525, ISO Code: TNMX 16 04 04-WF 1525, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiCN+TiN Coated, Material Grade: K, M, P, For Use On: Cast Iron, Stainless Steel and Steel
Features
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools
Specifications
ApplicationFinishing Applications
ANSI CodeTNMX 331-WF 1525
ChipbreakerWF
Corner Radius0.0156 in
Cutting DirectionNeutral
FinishPVD-TiCN+TiN Coated
For Use OnCast Iron, Stainless Steel and Steel
Hole Diameter0.15 in
Included Angle60 deg
Inscribed Circle3/8 in
Insert Size331
Insert StyleTNMX
ISO CodeTNMX 16 04 04-WF 1525
Length0.6495 in
Manufacturers Grade1525
MaterialCarbide
Material GradeK, M, P
Maximum Depth of Cut3 mm
RakeNegative
Relief Angle0 deg
Seat Size16
SeriesT-Max P
ShapeTriangular
Thickness0.1874 in
Additional Information
Country of OriginSE
