Sandvik Coromant SANC 5730984

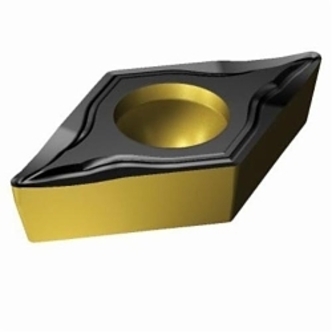

Sandvik Coromant 5730984 CoroTurn 107 Turning Insert, ANSI Code: DCMT 3(2.5)1-UM 1515, DCMT Insert, Material Grade: M, P, 3(2.5)1 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide
Invoice description:
Ins Dcmt 3(2.5)1-um 1515
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCMT Insert, 3(2.5)1 Insert, Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 11 Seat, Positive Rake, UM Chipbreaker, 0.016 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1515, ANSI Code: DCMT 3(2.5)1-UM 1515, ISO Code: DCMT 11 T3 04-UM 1515, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Specifications
ApplicationMedium Applications
ANSI CodeDCMT 3(2.5)1-UM 1515
ChipbreakerUM
Corner Radius0.016 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel and Steel
Hole Diameter0.1732 in
Included Angle55 deg
Inscribed Circle3/8 in
Insert Size3(2.5)1
Insert StyleDCMT
ISO CodeDCMT 11 T3 04-UM 1515
Manufacturers Grade1515
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesCoroTurn 107
ShapeDiamond
Thickness0.1562 in
Additional Information
Country of OriginUS
Sds
