Sandvik Coromant SANC 5730426

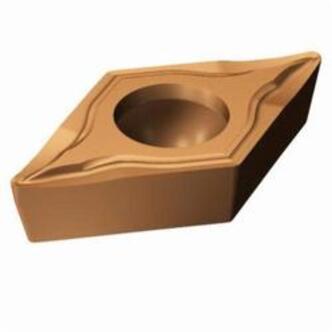

Sandvik Coromant 5730426 CoroTurn 107 Turning Insert, ANSI Code: DCGT 2(1.5)0-UM 1125, DCGT Insert, Material Grade: M, N, S, 2(1.5)0 Insert, Diamond Shape, 07 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 1125
Invoice description:
Ins Dcgt 2(1.5)0-um 1125
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCGT Insert, 2(1.5)0 Insert, Diamond, 1.5 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 07 Seat, Positive Rake, UM Chipbreaker, 0.008 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 1125, ANSI Code: DCGT 2(1.5)0-UM 1125, ISO Code: DCGT 07 02 02-UM 1125, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, N, S, For Use On: Stainless Steel, Non-Ferrous Metals, Heat Resistant Super Alloys and Titanium
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Specifications
ApplicationMedium Applications
ANSI CodeDCGT 2(1.5)0-UM 1125
ChipbreakerUM
Corner Radius0.008 in
Cutting DirectionNeutral
FinishPVD-TiAlN+AlCr2O3 Coated
For Use OnStainless Steel, Non-Ferrous Metals, Heat Resistant Super Alloys and Titanium
Hole Diameter0.1102 in
Included Angle55 deg
Inscribed Circle1/4 in
Insert Size2(1.5)0
Insert StyleDCGT
ISO CodeDCGT 07 02 02-UM 1125
Manufacturers Grade1125
MaterialCarbide
Material GradeM, N, S
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle7 deg
Seat Size07
SeriesCoroTurn 107
ShapeDiamond
Thickness0.0937 in
Additional Information
Country of OriginIN
