Harvey Tool HARV 34631-C3

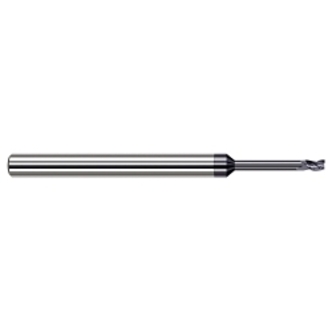

Harvey Tool 34631-C3 Center Cut Stub Length Miniature End Mill, 0.031 in Dia Cutter, 3/64 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN
Invoice description:
Em 1/32x3/64x1/4 3fl Sq
Manufacturer PN: 34631-C3
$73.92 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 34631-C3, Miniature End Mill, Center Cut Stub Length, 0.031 in Diameter Cutter, 2-1/2 in Overall Length, 3/64 in Length of Cut, 3 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Long length design for deep cavities, up to 10 in overall length
- Stub flute for maximum rigidity
- Reduced neck diameter to avoid heeling
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 0.2500 in (1/4)
- Reach Multiple (8x)
- Profile Square
Specifications
Cutter Diameter0.031 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeHelical
Helix Angle30 deg
Length of Cut3/64 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
