Sandvik Coromant SANC 5915122

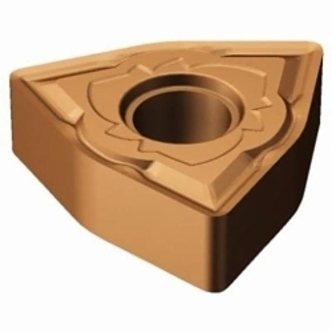

Sandvik Coromant 5915122 T-Max P Turning Insert, ANSI Code: WNMG 431-SM 1115, WNMG Insert, Material Grade: M, S, 431 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium
Invoice description:
Wnmg431-sm 1115 Loc 10068008
In stock
(10)
Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 431 Insert, Trigon, 2.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, SM Chipbreaker, 0.016 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: WNMG 431-SM 1115, ISO Code: WNMG 08 04 04-SM 1115, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium
Features
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools
Specifications
ApplicationMedium Applications
ANSI CodeWNMG 431-SM 1115
ChipbreakerSM
Corner Radius0.016 in
Cutting DirectionNeutral
FinishPVD-TiAlN+AlCr2O3 Coated
For Use OnStainless Steel, Heat Resistant Super Alloys and Titanium
Hole Diameter0.2029 in
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size431
Insert StyleWNMG
ISO CodeWNMG 08 04 04-SM 1115
Manufacturers Grade1115
MaterialCarbide
Material GradeM, S
Maximum Depth of Cut2.5 mm
RakeNegative
Relief Angle0 deg
Seat Size08
SeriesT-Max P
ShapeTrigon
Thickness0.187 in
Additional Information
Country of OriginSE
