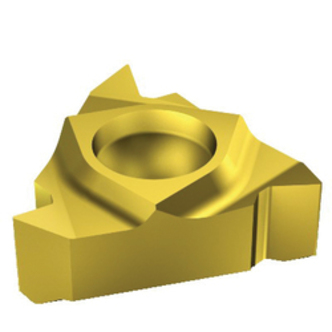

Sandvik Coromant SANC 5742075

Sandvik Coromant 5742075 T-Max U-Lock Threading Insert, ANSI Code: R166.0L-11VM01-001 1020, R166.0L Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.039 to 0.079 in Pitch, Right Hand Cutting

UNSPSC:
Manufacturer PN: 5742075
Factory Order
Estimated to ship in 7 days
--Price Unavailable--


Sandvik Coromant Threading Insert, Series: T-Max U-Lock, R166.0L Insert, 11 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.039 to 0.079 in Pitch, 12 to 24 Threads per Inch, 1/4 in Inscribed Circle, 1/8 in Thickness, ANSI Code: R166.0L-11VM01-001 1020, ISO Code: R166.0L-11VM01-001 1020, A Chipbreaker, 0.002 in Corner Radius, 60 deg Included Angle, Manufacturers Grade: 1020, Right Hand Cutting Direction, Carbide, PVD-TiN Coated, Material Grade: H, K, M, N, P, S

Specifications

ApplicationFor thread turning
ANSI CodeR166.0L-11VM01-001 1020
ChipbreakerA
Corner Radius0.002 in
Cutting DirectionRight Hand
FinishPVD-TiN Coated
Included Angle60 deg
Inscribed Circle1/4 in
Insert Size11
Insert StyleR166.0L
ISO CodeR166.0L-11VM01-001 1020
Manufacturers Grade1020
MaterialCarbide
Material GradeH, K, M, N, P, S
Pitch0.039 to 0.079 in
SeriesT-Max U-Lock
ShapeTriangular
Thickness1/8 in
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch12 to 24
