GARR GARR 80035

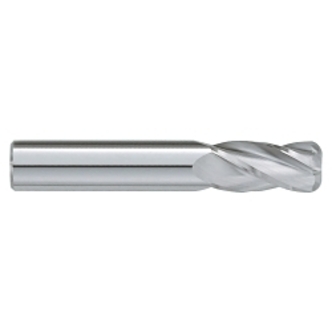

GARR 80035 230R Center Cutting Standard Length Corner Radius End Mill, 1/8 in Dia Cutter, 0.04 in Corner Radius, 1/2 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Bright
Invoice description:
Crem 1/8x1/2x1/8x1-1/2 .04r 4fl Cbd
UNSPSC:
27112803
Manufacturer PN: 80035
Factory OrderEstimated to ship in 7 days
--Price Unavailable--
GARR Corner Radius End Mill, Center Cutting Standard Length, Series: 230R, 1/8 in Diameter Cutter, 0.04 in Corner Radius, 1-1/2 in Overall Length, 1/2 in Length of Cut, 4 Flutes, 1/8 in Shank Diameter, 30 deg Helix Angle, Solid Submicron Grain Carbide, Bright
Features
- Radius tolerance 0.001 to -0.001 in (0.025 to -0.025 mm)
Specifications
ApplicationFor stronger corners and part radius
Corner Radius0.04 in
Cutter Diameter1/8 in
FinishBright
Helix Angle30 deg
Length of Cut1/2 in
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length1-1/2 in
Series230R
Shank Diameter1/8 in
TypeCenter Cutting Standard Length
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer
Country of OriginUS
Specification Sheet
