Sandvik Coromant SANC 5724110

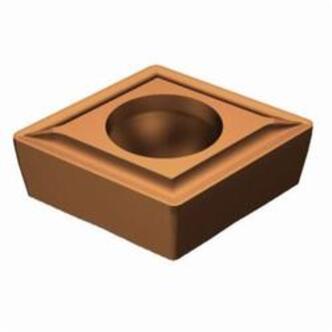

Sandvik Coromant 5724110 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)0-UF 1125, CCMT Insert, Material Grade: M, S, 3(2.5)0 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 1125
Invoice description:
Ins Ccmt09 T3 02-uf 1125
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)0 Insert, Diamond, 2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, UF Chipbreaker, 0.0078 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1125, ANSI Code: CCMT 3(2.5)0-UF 1125, ISO Code: CCMT 09 T3 02-UF 1125, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S, For Use On: Stainless Steel and Heat Resistant Super Alloys and Titanium
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationFinishing Applications
ANSI CodeCCMT 3(2.5)0-UF 1125
ChipbreakerUF
Corner Radius0.0078 in
Cutting DirectionNeutral
FinishPVD-TiAlN+AlCr2O3 Coated
For Use OnStainless Steel and Heat Resistant Super Alloys and Titanium
Hole Diameter0.1732 in
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size3(2.5)0
Insert StyleCCMT
ISO CodeCCMT 09 T3 02-UF 1125
Manufacturers Grade1125
MaterialCarbide
Material GradeM, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size09
SeriesCoroTurn 107
ShapeDiamond
Thickness0.1562 in
Additional Information
Country of OriginIN
