Harvey Tool HARVEY 995812

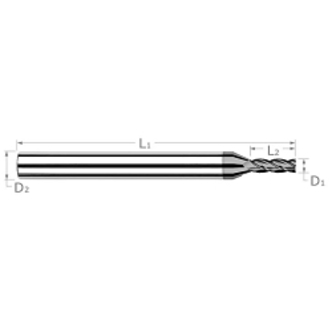

Harvey Tool 995812 Center Cut Diamond End Mill, 0.1875 in Dia Cutter, 0.57 in Length of Cut, (4) Flutes, 3/16 in Dia Shank, 2 in OAL, CVD Diamond
Invoice description:
3/16 X .570 Loc X 2 4fl Cvd Coat Diamond Mill
Manufacturer PN: 995812
$203.44 EACH
Factory OrderEstimated to ship in 7 days
Harvey Tool, 995812, Diamond End Mill, Center Cut, 0.1875 in Diameter Cutter, 2 in Overall Length, 0.57 in Length of Cut, 4 Flutes, Helical Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, 1.43 in Shank Length, Solid Carbide, CVD Diamond
Features
- True crystalline CVD diamond on solid carbide substrate
- Applicable Materials are Composites, Graphite
- Profile Square
Specifications
ApplicationIdeal for machining graphite and composites, green carbide and green ceramics
Cutter Diameter0.1875 in
Cutting DirectionRight Hand
FinishCVD Diamond
Flute TypeHelical
Helix Angle30 deg
Length of Cut0.57 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2 in
Shank Diameter3/16 in
Shank Length1.43 in
Shank TypeCylindrical
TypeCenter Cut
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
