Sandvik Coromant SANC 7860773

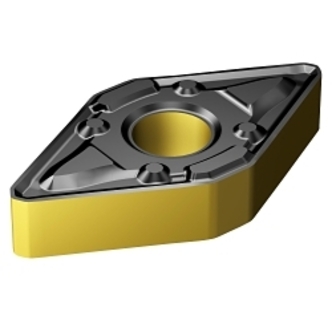

Sandvik Coromant 7860773 T-Max P Turning Insert, ANSI Code: DNMX 433-WMX 4425, DNMX Insert, 433 Insert, Diamond Shape, Left/Right Hand Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4425
Factory Order
Sandvik Coromant Turning Insert, Series: T-Max P, DNMX Insert, 433 Insert, Diamond Shape, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.563142 in Length, WMX Chipbreaker, 0.046874 in Corner Radius, >50 mm Diameter Hole, Manufacturers Grade: 4425, ANSI Code: DNMX 433-WMX 4425, ISO Code: DNMX 15 04 12-WMX 4425, 55 deg Included Angle, 0 deg Relief Angle, Left/Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, For Use On: Cast Iron and Steel
Features
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Inserts dedicated for precision coolant
- Roughing to finishing operation
- 0.8 to 6 mm depth of cut for cast iron and steel
- Four cutting edges
- True wiper edge property
Specifications
ApplicationTurning and General Applications
ANSI CodeDNMX 433-WMX 4425
ChipbreakerWMX
Corner Radius0.046874 in
Cutting DirectionLeft/Right Hand
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter>50 mm
Included Angle55 deg
Inscribed Circle1/2 in
Insert Size433
Insert StyleDNMX
ISO CodeDNMX 15 04 12-WMX 4425
Length0.563142 in
Manufacturers Grade4425
MaterialCarbide
Maximum Depth of Cut6 mm
Relief Angle0 deg
SeriesT-Max P
ShapeDiamond
Thickness3/16 in
