Sandvik Coromant SANC 5752152

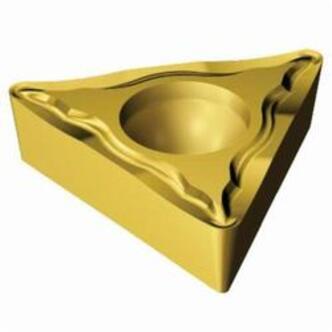

Sandvik Coromant 5752152 CoroTurn 107 Turning Insert, ANSI Code: TCMT 2(1.5)1-UM 2025, TCMT Insert, Material Grade: M, 2(1.5)1 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCMT Insert, 2(1.5)1 Insert, Triangular, 3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.094 in Thickness, 11 Seat, Positive Rake, UM Chipbreaker, 0.016 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 2025, ANSI Code: TCMT 2(1.5)1-UM 2025, ISO Code: TCMT 11 02 04-UM 2025, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationMedium Machining Applications
ANSI CodeTCMT 2(1.5)1-UM 2025
ChipbreakerUM
Corner Radius0.016 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter0.1102 in
Included Angle60 deg
Inscribed Circle1/4 in
Insert Size2(1.5)1
Insert StyleTCMT
ISO CodeTCMT 11 02 04-UM 2025
Manufacturers Grade2025
MaterialCarbide
Material GradeM
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesCoroTurn 107
ShapeTriangular
Thickness0.094 in
