Sandvik Coromant SANC 5731343

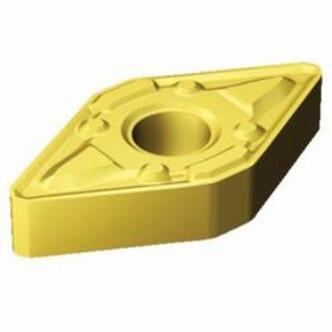

Sandvik Coromant 5731343 T-Max P Turning Insert, ANSI Code: DNMX 432-WMX 2015, DNMX Insert, Material Grade: M, 432 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: 2015
Invoice description:
Ins Dnmx 432-wmx 2015
UNSPSC:
23242107
Manufacturer PN: 5731343
Factory OrderEstimated to ship in 7 days
--Price Unavailable--
Sandvik Coromant Turning Insert, Series: T-Max P, DNMX Insert, 432 Insert, Rhombic, 0.197 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, WMX Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 2015, ANSI Code: DNMX 432-WMX 2015, ISO Code: DNMX 15 04 08-WMX 2015, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Specifications
ApplicationMedium Applications
ANSI CodeDNMX 432-WMX 2015
ChipbreakerWMX
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter0.2029 in
Included Angle55 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleDNMX
ISO CodeDNMX 15 04 08-WMX 2015
Manufacturers Grade2015
MaterialCarbide
Material GradeM
Maximum Depth of Cut0.197 in
RakeNegative
Relief Angle0 deg
Seat Size15
SeriesT-Max P
ShapeRhombic
Thickness0.1874 in
Additional Information
Country of OriginSE
