Sandvik Coromant SANC 5723602

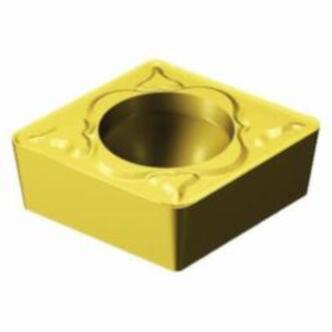

Sandvik Coromant 5723602 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)2-MM 2025, CCMT Insert, Material Grade: M, 3(2.5)2 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: 2025
Invoice description:
Ins Ccmt 3(2.5)2-mm 2025
UNSPSC:
23242107
Manufacturer PN: 5723602
Factory OrderEstimated to ship in 7 days
--Price Unavailable--
Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)2 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, MM Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 2025, ANSI Code: CCMT 3(2.5)2-MM 2025, ISO Code: CCMT 09 T3 08-MM 2025, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationMedium Machining Applications
ANSI CodeCCMT 3(2.5)2-MM 2025
ChipbreakerMM
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter0.1732 in
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size3(2.5)2
Insert StyleCCMT
ISO CodeCCMT 09 T3 08-MM 2025
Manufacturers Grade2025
MaterialCarbide
Material GradeM
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size09
SeriesCoroTurn 107
ShapeDiamond
Thickness0.1562 in
Additional Information
Country of OriginSE
Sds
