Sandvik Coromant SANC 5758808

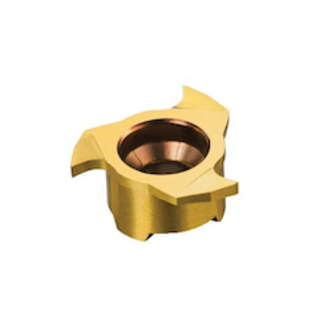

Sandvik Coromant 5758808 CoroMill 327 Milling Tip Insert, ANSI Code: 327R12-22 30002-GM 1025, 327-GM Milling Tip Style, Groove Milling Tip, Carbide, 0.008 in Corner Radius, Manufacturers Grade: 1025, 3 Flutes, Material Grade: K, M, P
Invoice description:
Carb Head For Grv 327r12-22 30002-gm 1025
Factory Order
Sandvik Coromant Milling Tip Insert, Series: CoroMill 327, 327-GM Milling Tip, Groove, 0.854 in Cutting Dia, 0.177 in Maximum Depth of Cut, 3 Flutes, GM Chipbreaker, 0.008 in Corner Radius, 90 deg Included Angle, Manufacturers Grade: 1025, ANSI Code: 327R12-22 30002-GM 1025, ISO Code: 327R12-22 30002-GM 1025, Right Hand, Carbide, PVD-TiAlN+TiN Coated, Material Grade: K, M, P
Features
- Low cutting forces
- Sharp cutting edges for high quality grooves without burr
- Multiple edges for highly productive and economic machining
- Large programme of inserts covering for instance circlips, o-rings, slots and threads
Specifications
ApplicationCirclip Grooving, Thread Milling, Groove Milling, Chamfering Both Front and Back
ANSI Code327R12-22 30002-GM 1025
ChipbreakerGM
Corner Radius0.008 in
Cutting Diameter0.854 in
FinishPVD-TiAlN+TiN Coated
Hand of InsertRight
Included Angle90 deg
ISO Code327R12-22 30002-GM 1025
Manufacturers Grade1025
MaterialCarbide
Material GradeK, M, P
Maximum Depth of Cut0.177 in
Milling Tip Style327-GM
Milling Tip TypeGroove
Number of Flutes3
SeriesCoroMill 327
Additional Information
Country of OriginFR
