Sandvik Coromant SANC 6155443

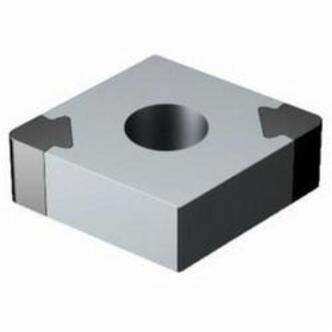

Sandvik Coromant 6155443 T-Max P Turning Insert, ANSI Code: CNGA431S0320A 7025, CNGA Insert, Material Grade: H, 431 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steel, Carbide, Manufacturers Grade: 7025
Invoice description:
Ins Cnga431s0320a 7025
Factory Order
Sandvik Coromant Turning Insert, Series: T-Max P, CNGA Insert, 431 Insert, Diamond, 0.1 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 12 Seat, Negative Rake, QM Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 7025, ANSI Code: CNGA431S0320A 7025, ISO Code: CNGA120404S01020A 7025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: H, For Use On: Hardened Steel
Features
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize using damped Silent Tools
- Negative basic shape inserts for high-performance turning
- Double sided inserts with strong edges
- Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility
- Precision nozzles and optimized geometries for high precision coolant machining
- Dedicated grades and geometries for all applications and materials
- Productive solution with wiper and Xcel technologies
- Tools featuring high precision coolant for excellent chip breaking
Specifications
ApplicationFinishing Applications
ANSI CodeCNGA431S0320A 7025
ChipbreakerQM
Corner Radius0.0156 in
Cutting DirectionNeutral
FinishUncoated
For Use OnHardened Steel
Hole Diameter0.2029 in
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size431
Insert StyleCNGA
ISO CodeCNGA120404S01020A 7025
Manufacturers Grade7025
MaterialCarbide
Material GradeH
Maximum Depth of Cut0.1 mm
RakeNegative
Relief Angle0 deg
Seat Size12
SeriesT-Max P
ShapeDiamond
Thickness0.1874 in
Additional Information
Country of OriginPL
