Harvey Tool HARV 860625-C3

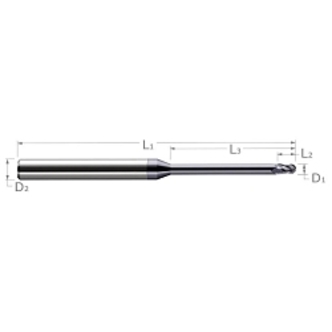

Harvey Tool 860625-C3 Center Cut Stub Length Miniature End Mill, 0.025 in Dia Cutter, 0.038 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, AlTiN
Invoice description:
Bem .250x.038x.15x2.5 3f Altin
Manufacturer PN: 860625-C3
$86.46 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 860625-C3, Miniature End Mill, Center Cut Stub Length, 0.025 in Diameter Cutter, 2-1/2 in Overall Length, 0.038 in Length of Cut, 3 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, AlTiN
Features
- Long length design for deep cavities, up to 8 in overall length
- Stub flute for maximum rigidity
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Overall Reach 0.1500 in
- Reach Multiple (6x)
- Profile Ball
Specifications
Cutter Diameter0.025 in
Cutting DirectionRight Hand
FinishAlTiN
Flute TypeUpcut
Helix Angle30 deg
Length of Cut0.038 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Country of OriginUS
