Sandvik Coromant SANC 8019492

Sandvik Coromant 8019492 CoroTurn 111 2-Cutting Edge Turning Insert, ANSI Code: DPMT 2(1.5)1-PF 4425, DPMT Insert, Material Grade: K, P, 21.51 Insert, Diamond Shape, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4425

Invoice description: Dpmt 07 02 04-pf 4425 Coroturn 111 Insert

UNSPSC: 23291601

Manufacturer PN: 8019492

^$18.86 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

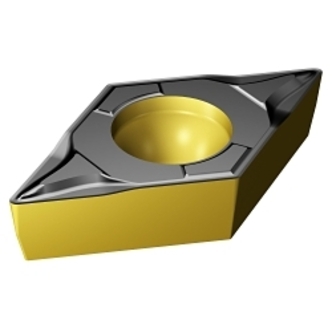

Sandvik Coromant Turning Insert, 2-Cutting Edge, Series: CoroTurn 111, DPMT Insert, 21.51 Insert, Diamond Shape, 1/4 in Inscribed Circle, 3/32 in Thickness, 0.2894 in Length, PF Chipbreaker, 0.0156 in Corner Radius, Manufacturers Grade: 4425, ANSI Code: DPMT 2(1.5)1-PF 4425, ISO Code: DPMT 07 02 04-PF 4425, 55 deg Included Angle, 11 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

Features
Secure insert clamping
Excellent repeatability
Free chip flow
Low cutting forces
Excellent edge strength
Positive insert shape
Screw clamping ensures stability and unobstructed chip flow
Tools with high pressure coolant
Insert geometries and grades for all materials

Specifications

ApplicationFor machining of steel, stainless steel, cast iron, heat-resistant super alloys, titanium, hardened materials, aluminum, non-ferrous material, finishing and medium roughing

ANSI CodeDPMT 2(1.5)1-PF 4425

ChipbreakerPF

Corner Radius0.0156 in

Cutting DirectionNeutral

FinishCVD-TiCN+Al2O3+TiN Coated

For Use OnCast Iron and Steel

Included Angle55 deg

Inscribed Circle1/4 in

Insert Size21.51

Insert StyleDPMT

ISO CodeDPMT 07 02 04-PF 4425

Length0.2894 in
