Sandvik Coromant SANC 5725474

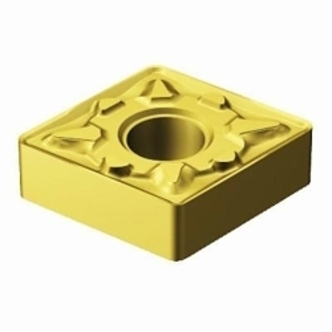

Sandvik Coromant 5725474 T-Max P Turning Insert, ANSI Code: CNMG 643-MM 2025, CNMG Insert, Material Grade: M, 643 Insert, Rhombic Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: 2025
Invoice description:
Ins T-max P Cnmg 643-mm 2025
Factory Order
Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 643 Insert, Rhombic, 0.335 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, MM Chipbreaker, 0.047 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 2025, ANSI Code: CNMG 643-MM 2025, ISO Code: CNMG 19 06 12-MM 2025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, For Use On: Stainless Steel
Specifications
ApplicationMedium Applications
ANSI CodeCNMG 643-MM 2025
ChipbreakerMM
Corner Radius0.047 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnStainless Steel
Hole Diameter0.312 in
Included Angle80 deg
Inscribed Circle3/4 in
Insert Size643
Insert StyleCNMG
ISO CodeCNMG 19 06 12-MM 2025
Manufacturers Grade2025
MaterialCarbide
Material GradeM
Maximum Depth of Cut0.335 in
RakeNegative
Relief Angle0 deg
Seat Size19
SeriesT-Max P
ShapeRhombic
Thickness1/4 in
Additional Information
Country of OriginSE
