Sandvik Coromant SANC 7859088
Sandvik Coromant 7859088 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)1-WM 4415, CCMT Insert, 32.51 Insert, Diamond Shape, Left/Right Hand Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4415
Invoice description:
Ins Ccmt3(2.5)1-wm 4415
Factory Order

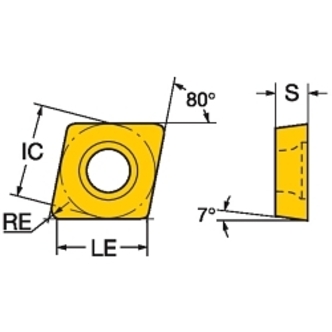

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 32.51 Insert, Diamond Shape, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 5/32 in Thickness, 0.365035 in Length, Single-Sided WM Chipbreaker, 0.015626 in Corner Radius, 6 to 80 mm Diameter Hole, Manufacturers Grade: 4415, ANSI Code: CCMT 3(2.5)1-WM 4415, ISO Code: CCMT 09 T3 04-WM 4415, 80 deg Included Angle, 7 deg Relief Angle, Left/Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, For Use On: Cast Iron and Steel
Features
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Medium to finishing operation
- 0.5 to 4 mm depth of cut for cast iron and steel
- Two cutting edges
- True wiper edge property
ApplicationTurning and General Applications
Additional Information
Standards/ApprovalPROP65: This product contains Carbide chemicals kn
Country of OriginSE
