Harvey Tool HARV 36593

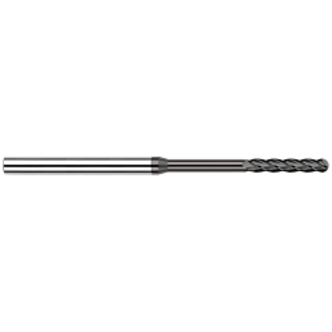

Harvey Tool 36593 Center Cut Long Length Long Reach Diamond End Mill, 0.093 in Dia Cutter, 1/2 in Length of Cut, (4) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, CVD Diamond
Invoice description:
Bem 3/32x1/2x.95lbsx1/8x 2-1/2 4fl Dmd C5
Manufacturer PN: 36593
$266.48 EA
Factory OrderEstimated to ship in 22 days
Harvey Tool, 36593, Diamond End Mill, Center Cut Long Length Long Reach, 0.093 in Diameter Cutter, 2-1/2 in Overall Length, 1/2 in Length of Cut, 4 Flutes, Upcut Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, CVD Diamond
Features
- True crystalline CVD diamond on solid carbide substrate
- Reduced neck for clearance and maximum rigidity
- Applicable Materials are Composites, Graphite
- Overall Reach 0.9500 in
- Reach Multiple (10x)
Specifications
ApplicationIdeal for machining graphite and composites, green carbide and green ceramics
Cutter Diameter0.093 in
Cutting DirectionRight Hand
FinishCVD Diamond
Flute TypeUpcut
Helix Angle30 deg
Length of Cut1/2 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Long Length Long Reach
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
