Harvey Tool HARV 930330-C6

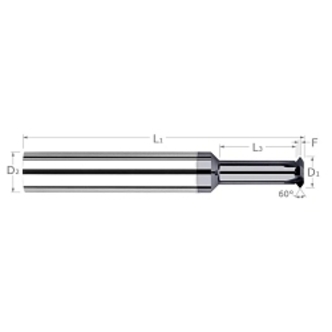

Harvey Tool 930330-C6 Single-Form Thread Milling Cutter, 8 Thread UN Thread, 2-1/2 in OAL, (4) Flutes, 1/4 in Dia Shank
Invoice description:
Forcut 8x.12x.0028x.084x 3/4x4x2.5 60d C6
Manufacturer PN: 930330-C6
$203.44 EA
Factory OrderEstimated to ship in 14 days
Harvey Tool, 930330-C6, Thread Milling Cutter, Single-Form, 8 Thread, UN Thread, 0.12 in Diameter Cutting, 0.023 in Length of Cut, 2-1/2 in Overall Length, 4 Flutes, Cylindrical Shank, 1/4 in Shank Diameter, Solid Carbide, AlTiN Nano
Features
- Single thread form designed to mill common pitch sizes
- Tip of included angle ground to a flat for increased wear resistance
- Large rigid core diameter and eccentric relief for improved strength
- Mills left hand and right hand threads
- Cuts internal and external 60 deg UN threads
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Applicable Materials are Cast Iron, Steel, Stainless Steel, Hardened Alloys
- Pitch Range 32-36
- Tip Flat 0.0028 in
- Neck Diameter 0.0840 in
Specifications
ApplicationDesigned for threading hardened steel 48-68Rc
Cutting Diameter0.12 in
FinishAlTiN Nano
Length of Cut0.023 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2-1/2 in
Shank Diameter1/4 in
Shank TypeCylindrical
Thread Size8
Thread TypeUN
TypeSingle-Form
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
Sds
