Sandvik Coromant SANC 5755925

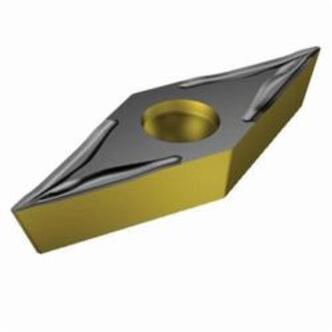

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VCGT Insert, 220 Insert, Rhombic, 0.059 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, 11 Seat, Positive Rake, UM Chipbreaker, 0.008 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 1515, ANSI Code: VCGT 220-UM 1515, ISO Code: VCGT 11 03 02-UM 1515, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

• Features

• Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
• The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
• Wiper geometries available for high feeds and high quality surface finish
• Ground, super sharp insert offer for exceptional surface finish

Additional Information

Documents

• Sds
