Sandvik Coromant SANC 6612368

Sandvik Coromant 6612368 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)1-WM 4315, CCMT Insert, Material Grade: K, P, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Invoice description: Ins Ccmt 09 T3 04-wm4315

UNSPSC: 23242107

Manufacturer PN: 6612368

^$22.87 EACH

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

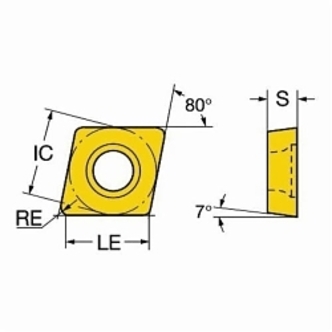

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)1 Insert, Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, WM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: CCMT 3(2.5)1-WM 4315, ISO Code: CCMT 09 T3 04-WM 4315, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

Features
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

ApplicationMedium Machining Applications
