PFERD PFE 23824

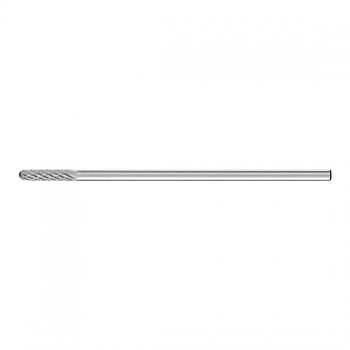

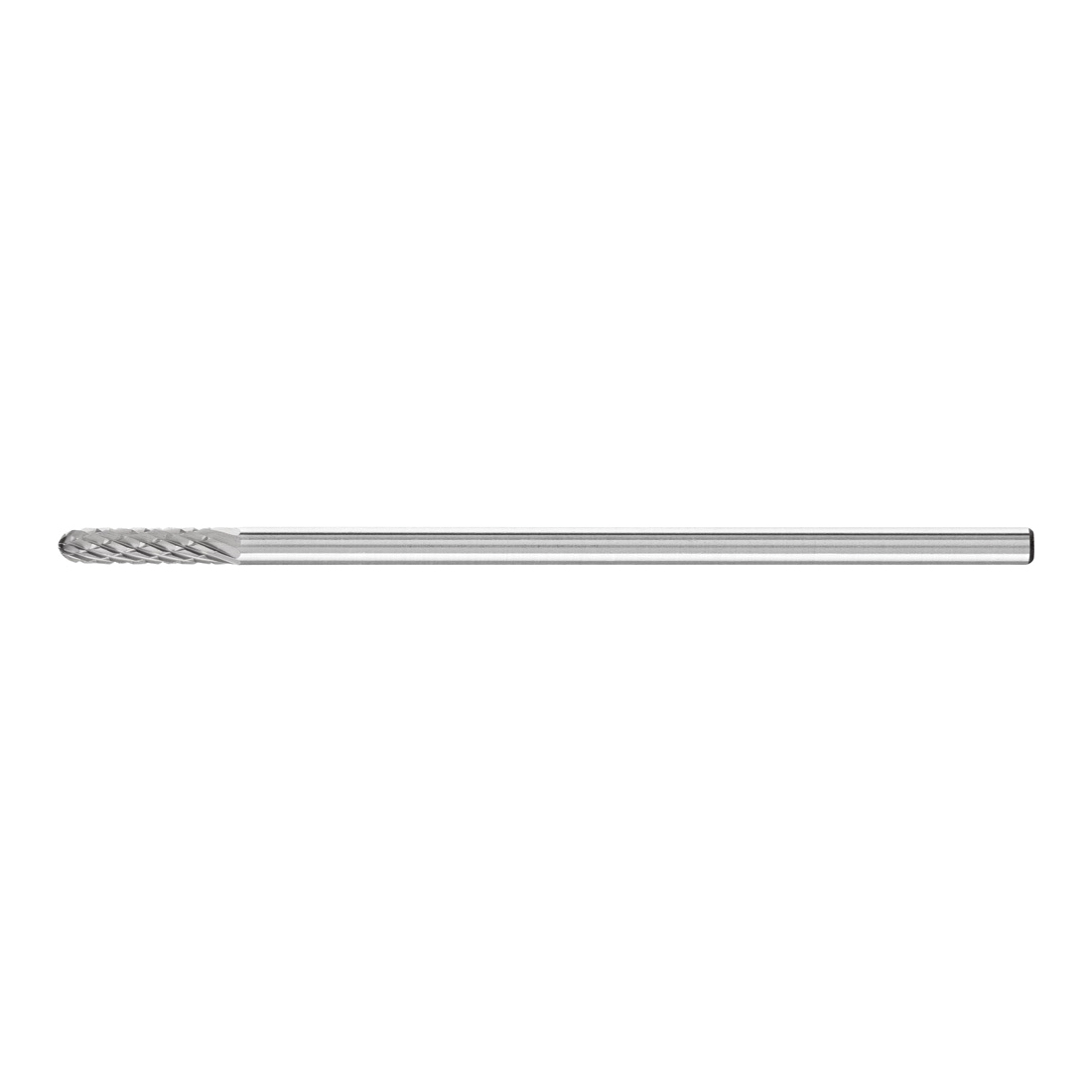

PFERD 23824 Universal Line Extended Shank Premium Grade Carbide Burr, Radius End, Cylindrical - Radius End (Shape SC) Head, 1/8 in Dia Head, 1/2 in L of Cut, 3 in OAL, Double Cut

UPC: 097758238243
UNSPSC: 23251706
Manufacturer PN: 23824
$3.88 EA
In stock (31)
QTY:


PFERD Carbide Burr, Extended Shank Premium Grade, Series: Universal Line, Radius End, 1/8 in Diameter Head, 1/2 in Length of Cut, 3 in Overall Length, Cylindrical - Radius End (Shape SC) Head Shape, Double Cut, 1/8 in Shank Diameter, Tungsten Carbide Head, Bright Head Coating, 31000 rpm Maximum, Applicable Materials: Cast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel, Industry Specification: SC-42L3

  • Features

  • Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating
  • Long service life
  • Reduced wear on the power tool due to impact-free work without chatter marks, due to the high concentricity
  • High surface quality

Specifications

ApplicationDeburring, Leveling, Milling Out, Cutting Out Holes, Surface Work and Work on Weld Seams
Applicable MaterialsCast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel
Cut TypeDouble
End TypeRadius
Head CoatingBright
Head Diameter1/8 in
Head MaterialTungsten Carbide
Head ShapeCylindrical - Radius End (Shape SC)
Industry SpecificationSC-42L3
Length of Cut1/2 in
Maximum Speed31000 rpm
Overall Length3 in
SeriesUniversal Line
Shank Diameter1/8 in
TypeExtended Shank Premium Grade
