MORSE MOR 50872

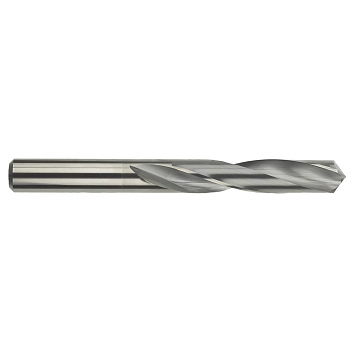

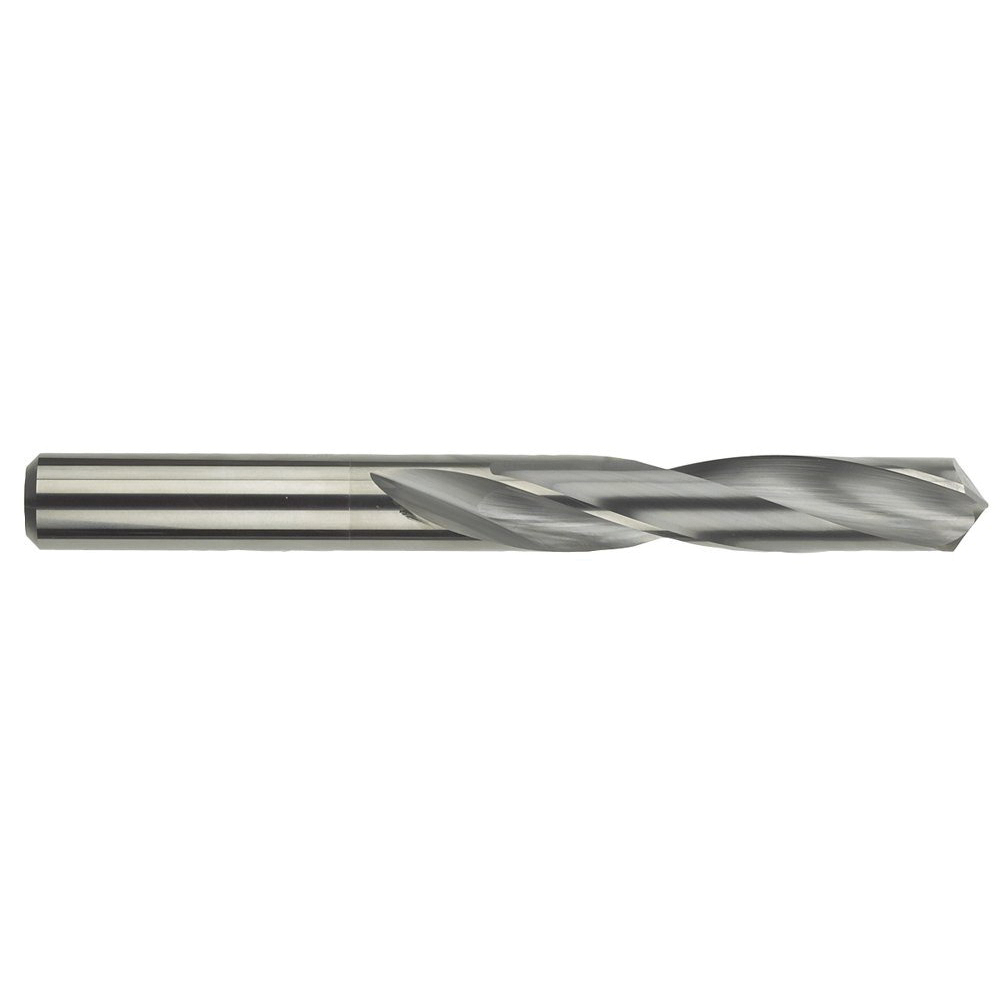

MORSE 50872 5375 General Purpose Screw Machine Drill, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, Solid Carbide, Bright

Invoice description: 5/64 135d Crb Screw Mac H Drl

UPC: 686125508722

UNSPSC: 23241605

Manufacturer PN: 50872

^$9.30 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

MORSE Screw Machine Drill, General Purpose, Series: 5375, Imperial, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, 1-11/16 in Overall Length, 11/16 in Cutting Depth, Standard Flute, 11/16 in Flute Length, 5/64 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Carbon Steel, Cast Iron, Gummy Materials, High Temperature Alloy Steel, Inconel, Other High Strength Ferrous Materials, Stainless Steel, Titanium, Tool Steel and Work Hardened

Features
Solid carbide offers excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life
High rigidity enhances hole accuracy and quality
135 deg self-centering split point eliminates walking and reduces thrust

Specifications

ApplicationFor tough drilling applications

Applicable MaterialsCarbon Steel, Cast Iron, Gummy Materials, High Temperature Alloy Steel, Inconel, Other High Strength Ferrous Materials, Stainless Steel, Titanium, Tool Steel and Work Hardened

Cutting Depth11/16 in

Cutting DirectionRight Hand

Cutting Edge MaterialSolid Carbide

Drill Diameter Measurement SystemImperial

Drill Size - Decimal Inch0.0781 in

Drill Size - Fraction5/64 in

FinishBright

Flute Length11/16 in

Flute TypeStandard

MaterialSolid Carbide

Overall Length1-11/16 in

Point Angle135 deg
