MORSE MOR 12186

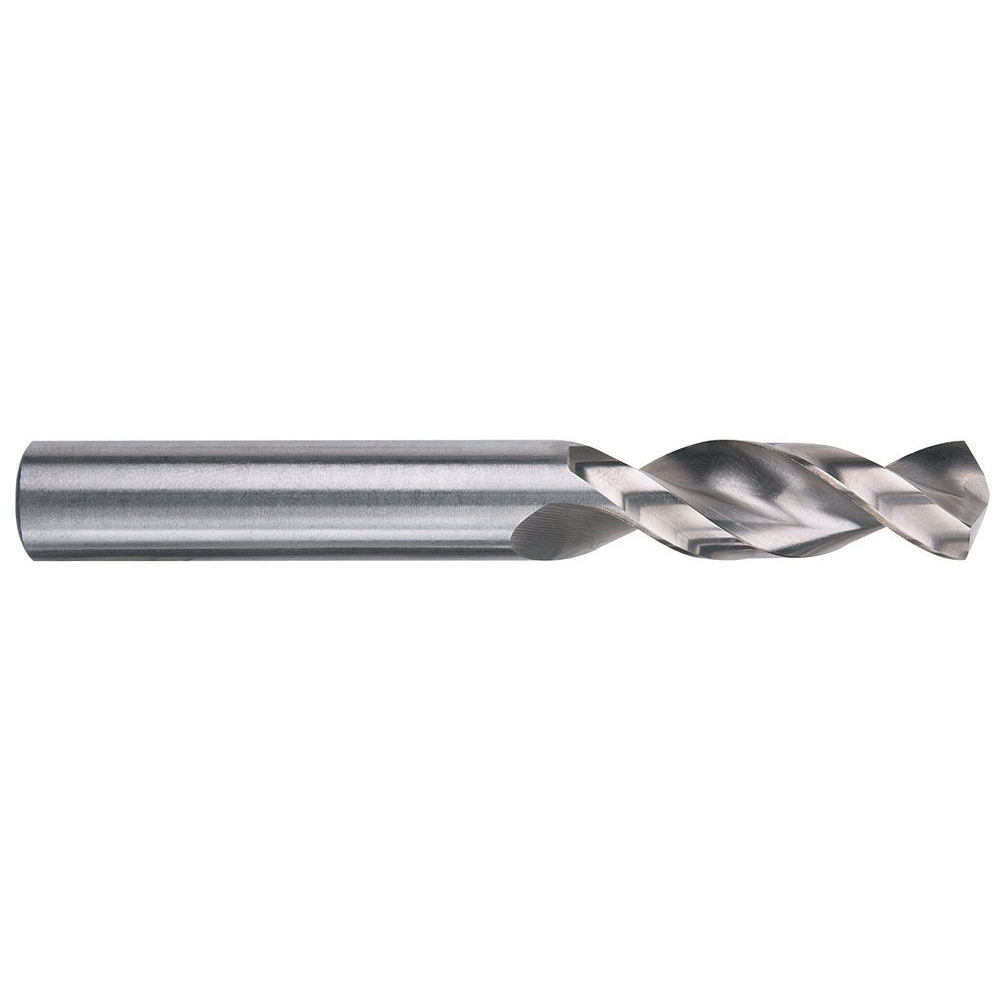

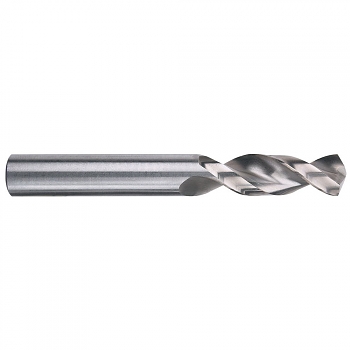

MORSE 12186 1360 High Performance Heavy Duty Web Screw Machine Drill, #47 Drill - Wire, 0.0785 in Drill - Decimal Inch, M35 Cobalt, Bright
Invoice description:
Bit Drill Hpc #47 Wl Par/sml
UPC: 686125121860
UNSPSC:
23241635
Manufacturer PN: 12186
$11.40 EA
Factory OrderEstimated to ship in 7 days
MORSE Screw Machine Drill, High Performance Heavy Duty Web, Series: 1360, Imperial, #47 Drill - Wire, 0.0785 in Drill - Decimal Inch, 38 mm Overall Length, 3XD Cutting Depth, Wide Land Parabolic Flute, 12 mm Flute Length, 0.0785 in Shank, Straight Shank, 130 deg Point, Self-Centering Point, Right Hand Cutting Direction, M35 Cobalt Cutting Edge, M35 Cobalt, Bright, Applicable Materials: Alloy Steel, Ferrous Casting, Inconel, Stainless Steel, Titanium and Other Difficult-to-Drill Material
Features
- M35 cobalt offers increased hardness, toughness, wear resistance and heat resistance
- Highly recommended for drilling tough, high tensile strength materials up to 35 rc hardness and materials that generate higher cutting temperatures
- Short flute length and short overall length for maximum rigidity
Specifications
ApplicationFor drilling tough, high tensile strength materials
Applicable MaterialsAlloy Steel, Ferrous Casting, Inconel, Stainless Steel, Titanium and Other Difficult-to-Drill Material
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialM35 Cobalt
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0785 in
Drill Size - Wire#47
FinishBright
Flute Length12 mm
Flute TypeWide Land Parabolic
MaterialM35 Cobalt
Overall Length38 mm
Point Angle130 deg
Point TypeSelf-Centering
Series1360
Shank Size0.0785 in
Shank TypeStraight
TypeHigh Performance Heavy Duty Web
Additional Information
Standards/ApprovalISO 9001:2015
Country of OriginFR
