MORSE MOR 15152

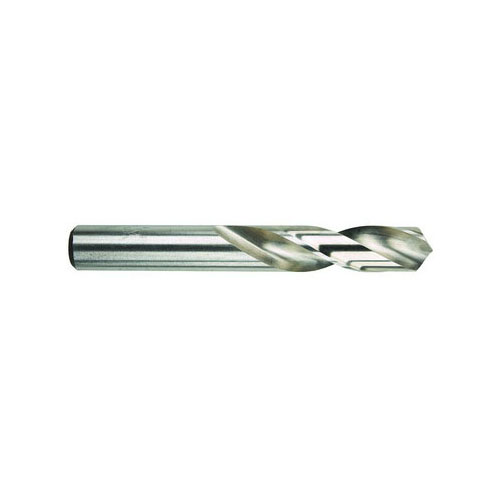

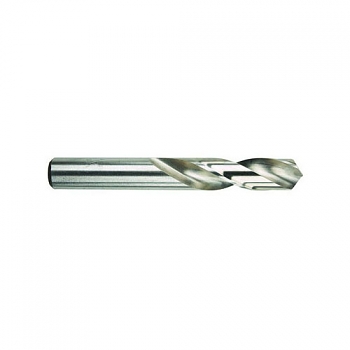

MORSE 15152 1435 General Purpose Screw Machine Drill, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, HSS, Bright
Invoice description:
11/64 118d Bright Hss S Cr Mach Dr
In stock
(6)
MORSE Screw Machine Drill, General Purpose, Series: 1435, Imperial, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 2-1/8 in Overall Length, 1-1/16 in Cutting Depth, Standard Flute, 1-1/16 in Flute Length, 11/64 in Shank, Straight Shank, 118 deg Point, Standard Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Low Tensile Strength Steel and Non-Ferrous Material
Features
- Developed primarily for use in screw machines, these short length drills provide maximum rigidity resulting in increased hole accuracy and extended tool life
- Bright finish with polished flutes enhances chip ejection especially for aluminum and other non-ferrous materials
Specifications
ApplicationFor drilling a wide variety of materials
Applicable MaterialsLow Tensile Strength Steel and Non-Ferrous Material
Cutting Depth1-1/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.1719 in
Drill Size - Fraction11/64 in
FinishBright
Flute Length1-1/16 in
Flute TypeStandard
MaterialHSS
Overall Length2-1/8 in
Point Angle118 deg
Point TypeStandard
Series1435
Shank Size11/64 in
Shank TypeStraight
TypeGeneral Purpose
Additional Information
Standards/ApprovalISO 9001:2015
Country of OriginUS
