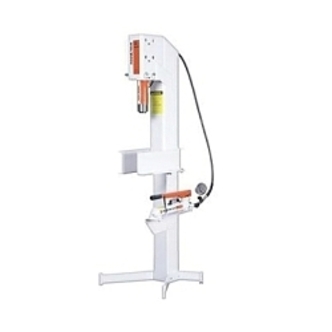

Power Team SPX SPM256C

Power Team Hydraulic Shop Press, 25 ton Capacity, 24-1/2 in Base Length, 24 in Base Width, 77-5/8 in Height, Hand Pump, 6-1/4 in Stroke Length, 10000 psi Pressure, C Frame, 24 x 24-1/2 in Working Space, 0.129 in/stroke Advance, 0.03 in/stroke Pressing Speed

• Features

• Can be bench mounted or on optional pedestal base
• Bench mount requires less than 1.5 sq-ft of space, on optional pedestal, only 4 sq-ft of floor space is needed
• Open-End-Access design makes loading and unloading of work easy
• Cylinder head adjusts to three convenient working positions, providing up to 20-1/4 in of daylight
• Hydraulic cylinder delivers a 6-1/4 in stroke and is driven by a P59 2-speed hand pump

Specifications

Documents

• Specification Sheet
