Power Team SPX SPE10013DS-380

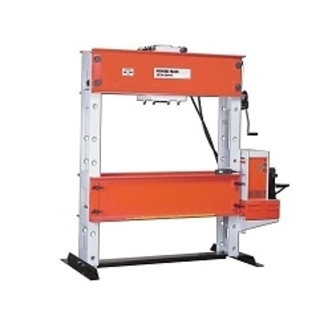

Power Team SPE10013DS-380 Hydraulic Shop Press, 100 ton, 3 hp, 64 in Base Length, 36 in Base Width, 13-1/8 in Stroke Length, H Frame, 77-1/4 in H, Electric Pump
Factory Order
Power Team Hydraulic Shop Press, 100 ton Capacity, 64 in Base Length, 36 in Base Width, 77-1/4 in Height, Electric Pump, 13-1/8 in Stroke Length, H Frame, 38 x 78-1/4 in Working Space, 3 hp, 35 in/min Advance, 5.8 in/min Pressing Speed
Features
- Cylinder workhead glides across upper frame on rollers, locks in place for off center pressing jobs
- May be used horizontally for special pressing applications with user supplied supports
- Press bed is raised and lowered by winch which locks in place for insertion of bed retaining pins
- Upper bolster can be lowered 8 in for convenient positioning on repetitive jobs
- Generous daylight of 42 x 50 in accommodates bulky work pieces, uprights are placed for easy side entry of bars or shafts for straightening or bending
Specifications
Base Length64 in
Base Width36 in
Capacity100 ton
Frame TypeH Frame
Height77-1/4 in
Horsepower3 hp
Pump TypeElectric
Speed35 in/min Advance, 5.8 in/min Pressing
Stroke Length13-1/8 in
Working Space38 x 78-1/4 in
Specification Sheet
