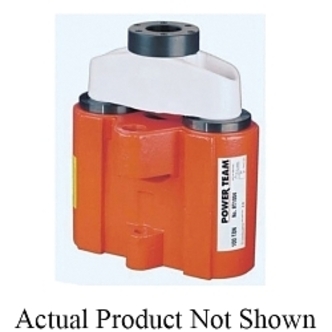

Power Team SPX RT172

Power Team RT172 Center Hole Hydraulic Cylinder, 2 in L Stroke, 17.5 ton Max Force, Single Acting/Double Acting/Spring Return Function

UPC: 662536003612
UNSPSC:
Manufacturer PN: RT172
$2,460.26 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Center Hole, Series: RT Series, 2 in Stroke Length, 17.5 ton Maximum Force, Function: Single Acting/Double Acting/Spring Return, 3.53 sq-in Effective Area Clamped, 7.06 cu-in Oil Capacity Clamped, 8-7/8 in Extended Height, 6-7/8 in Retracted Height, 10000 psi Pressure, 3-3/4 in OD Dimensions

  • Features

  • A proven design used throughout industry for over 45 years
  • Cylinders withstand full dead end loads
  • Compact design, ideal for applications in which space is limited
  • Basic head can be changed from a tapped hole to plain hole by simply changing insert
  • Pistons have Power-Tech treatment for corrosion and abrasion resistance

Specifications

Dimensions3-3/4 in OD
Effective Area Clamped3.53 sq-in
Extended Height8-7/8 in
FunctionSingle Acting/Double Acting/Spring Return
Maximum Force17.5 ton
Oil Capacity Clamped7.06 cu-in
Pressure Rating10000 psi
Retracted Height6-7/8 in
SeriesRT Series
Stroke Length2 in
TypeCenter Hole
