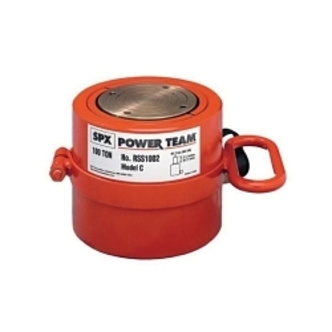

Power Team SPX RSS1002D

Power Team RSS1002D Low Height Hydraulic Cylinder, 1-1/2 in L Stroke, 100 ton Max Force, Single Acting/Double Acting/Spring Return Function

Invoice description: Cyl 100 Ton 11/2 Stroke K Cyl 100 Ton 11/2 Strokek

UPC: 662536003544
UNSPSC: 27121602
Manufacturer PN: RSS1002D
$4,302.19 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Low Height, Series: RSS, 1-1/2 in Stroke Length, 100 ton Maximum Force, Function: Single Acting/Double Acting/Spring Return, 5 deg Swivel, 19.63 sq-in Effective Area Clamped, 29.4 cu-in Oil Capacity Clamped, 12.9 cu-in Oil Capacity Unclamped, 7-3/16 in Extended Height, 5-11/16 in Retracted Height, 10186 psi Pressure, 6-7/8 in OD Dimensions

  • Features

  • Power-Tech plated piston rods and gland nuts resist scoring and corrosion
  • Heavy duty return spring (except for double acting models) provides fast piston return and low collapsed height
  • Coupler on 10 thru 50 ton models is angled upward 5 deg for added clearance
  • Grooved piston top keeps load from sliding
  • Cylinders can be dead ended at full capacity
  • Removable carrying handle on 100 ton and 250 ton models

Specifications

Dimensions6-7/8 in OD
Effective Area Clamped19.63 sq-in
Extended Height7-3/16 in
FunctionSingle Acting/Double Acting/Spring Return
Maximum Force100 ton
Oil Capacity Clamped29.4 cu-in
Oil Capacity Unclamped12.9 cu-in
Pressure Rating10186 psi
Retracted Height5-11/16 in
SeriesRSS
Stroke Length1-1/2 in
Swivel Angle5 deg
TypeLow Height

Additional Information

Standards/ApprovalASME B30.1
