Power Team SPX RD20013

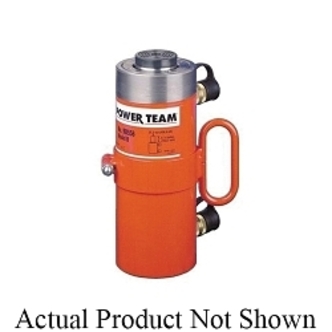

Power Team RD20013 High Tonnage Hydraulic Cylinder, 13-1/8 in L Stroke, 200 ton Max Force, Double Acting/Hydraulic Return Function
Invoice description:
Cyl 200 Ton 131/8 Strok E Cyl 200 Ton 131/8 Stroke
UPC: 662536002790
UNSPSC:
27121602
Manufacturer PN: RD20013
$18,473.10 EA
Factory OrderEstimated to ship in 7 days
Power Team Hydraulic Cylinder, High Tonnage, Series: RD Series, 13-1/8 in Stroke Length, 200 ton Maximum Force, Function: Double Acting/Hydraulic Return, 41.28 sq-in Effective Area Clamped, 22.62 sq-in Effective Area Unclamped, 541.8 cu-in Oil Capacity Clamped, 296.9 cu-in Oil Capacity Unclamped, 35-5/8 in Extended Height, 22-1/2 in Retracted Height, 10000 psi Pressure, 9-1/2 in OD Dimensions
Features
- Aluminum bronze overlay bearings provide long life, chrome plated piston rod resists corrosion
- Load cap snaps out to expose internal piston rod threads for pulling applications, threads withstand full tonnage
- Grooved ring pattern in load cap helps guard against load slippage
- Each cylinder has two 9796 3/8 in NPTF female half couplers
- Built-in safety relief valve prevents over pressurization of the retract circuit
- Feature mounting holes and collar threads
Specifications
ApplicationBridge Lifting, Building Reconstruction, Mining Equipment Maintenance, Shipyard and Utility
Dimensions9-1/2 in OD
Effective Area Clamped41.28 sq-in
Effective Area Unclamped22.62 sq-in
Extended Height35-5/8 in
FunctionDouble Acting/Hydraulic Return
Maximum Force200 ton
Oil Capacity Clamped541.8 cu-in
Oil Capacity Unclamped296.9 cu-in
Pressure Rating10000 psi
Retracted Height22-1/2 in
SeriesRD Series
Stroke Length13-1/8 in
TypeHigh Tonnage
Additional Information
Standards/ApprovalASME B30.1
Line Drawing
