Power Team SPX RA554

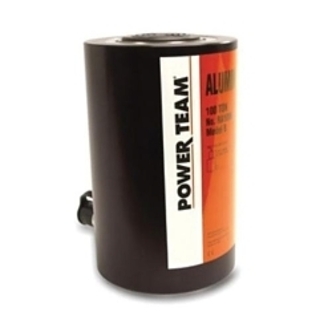

Power Team RA554 Hydraulic Cylinder, 4-1/8 in L Stroke, 55 ton Max Force, Single Acting/Spring Return Function
Factory Order
Power Team Hydraulic Cylinder, Series: RA Series, 4-1/8 in Stroke Length, 55 ton Maximum Force, Function: Single Acting/Spring Return, 11.04 sq-in Effective Area Clamped, 45.5 cu-in Oil Capacity Clamped, 12-7/8 in Extended Height, 8-3/4 in Retracted Height, 10000 psi Pressure, Aluminum, 5-1/4 in OD Dimensions
Features
- Half the weight of equal capacity steel cylinders
- Aluminum body resists sparking in explosive environments
- Hard coated aluminum piston rod and cylinder bore resist wear and corrosion
- Grooved piston top helps keep the load from sliding on top of piston
- Designed for jacking and other non production operations
Specifications
ApplicationFor general purpose applications
Dimensions5-1/4 in OD
Effective Area Clamped11.04 sq-in
Extended Height12-7/8 in
FunctionSingle Acting/Spring Return
MaterialAluminum
Maximum Force55 ton
Oil Capacity Clamped45.5 cu-in
Pressure Rating10000 psi
Retracted Height8-3/4 in
SeriesRA Series
Stroke Length4-1/8 in
