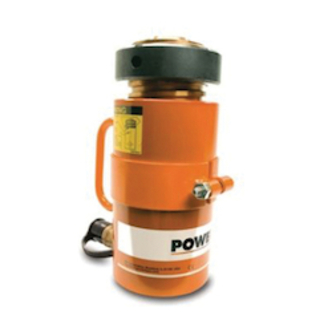

Power Team SPX R56510L

Power Team R56510L Locking Collar Hydraulic Cylinder, 10 in L Stroke, 565 ton Max Force, Single Acting/Load Return Function

UPC: 662536355346
UNSPSC:
Manufacturer PN: R56510L
$46,255.06 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Locking Collar, Series: RL Series, 10 in Stroke Length, 565 ton Maximum Force, Function: Single Acting/Load Return, 5 deg Swivel, 113.1 sq-in Effective Area Clamped, 1131 cu-in Oil Capacity Clamped, 32.625 in Extended Height, 22-5/8 in Retracted Height, 10000 psi Pressure, Steel, 14-7/8 in OD Dimensions

  • Features

  • Supports lifted load for extended periods of time with hydraulic pressure released
  • Visible indicator band alerts when stroke limit is reached, overflow port (weep hole) stroke limiter prevents piston from being over extended
  • All cylinders feature coated pistons to resist corrosion and abrasion

Specifications

Dimensions14-7/8 in OD
Effective Area Clamped113.1 sq-in
Extended Height32.625 in
FunctionSingle Acting/Load Return
MaterialSteel
Maximum Force565 ton
Oil Capacity Clamped1131 cu-in
Pressure Rating10000 psi
Retracted Height22-5/8 in
SeriesRL Series
Stroke Length10 in
Swivel Angle5 deg
TypeLocking Collar
