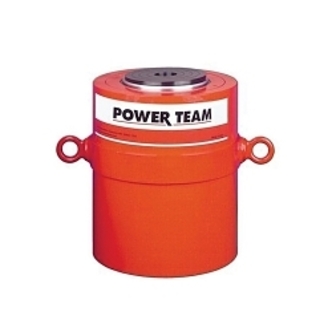

Power Team SPX R2806D

Power Team R2806D High Tonnage Hydraulic Cylinder, 6 in L Stroke, 280 ton Max Force, Double Acting/Hydraulic Return Function

UPC: 662536328609
UNSPSC:
Manufacturer PN: R2806D
$20,119.30 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, High Tonnage, Series: R Series, 6 in Stroke Length, 280 ton Maximum Force, Function: Double Acting/Hydraulic Return, 56.7 sq-in Effective Area Clamped, 340.2 cu-in Oil Capacity Clamped, 141.6 cu-in Oil Capacity Unclamped, 19.203 in Extended Height, 13.203 in Retracted Height, 10000 psi Pressure, 10-7/8 in OD Dimensions

  • Features

  • Cylinders come standard with swivel caps to reduce the effects of off-center loading
  • Cylinders may be dead ended without damage
  • Hard chrome plated, heat treated piston rod reduces wear on piston and gland nut
  • Built-in safety relief valve prevents over pressurization of the retract circuit
  • Each cylinder has two 9796 3/8 in NPTF female half couplers

Specifications

Dimensions10-7/8 in OD
Effective Area Clamped56.7 sq-in
Extended Height19.203 in
FunctionDouble Acting/Hydraulic Return
Maximum Force280 ton
Oil Capacity Clamped340.2 cu-in
Oil Capacity Unclamped141.6 cu-in
Pressure Rating10000 psi
Retracted Height13.203 in
SeriesR Series
Stroke Length6 in
TypeHigh Tonnage
