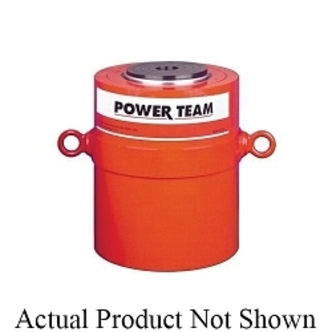

Power Team SPX R10010D
Power Team R10010D High Tonnage Hydraulic Cylinder, 10 in L Stroke, 100 ton Max Force, Double Acting/Hydraulic Return Function
Invoice description:
Cyl 100 Ton 10 Stroke Cyl 100 Ton 10 Stroke
UPC: 662536328524
UNSPSC:
27121602
Manufacturer PN: R10010D
$7,566.73 EA
Factory OrderEstimated to ship in 7 days
Power Team Hydraulic Cylinder, High Tonnage, Series: R Series, 10 in Stroke Length, 100 ton Maximum Force, Function: Double Acting/Hydraulic Return, 20.6 sq-in Effective Area Clamped, 206 cu-in Oil Capacity Clamped, 96 cu-in Oil Capacity Unclamped, 24.641 in Extended Height, 14.641 in Retracted Height, 10000 psi Pressure, 6-1/2 in OD Dimensions
Features
- Cylinders come standard with swivel caps to reduce the effects of off-center loading
- Cylinders may be dead ended without damage
- Hard chrome plated, heat treated piston rod reduces wear on piston and gland nut
- Built-in safety relief valve prevents over pressurization of the retract circuit
- Each cylinder has two 9796 3/8 in NPTF female half couplers
Specifications
Dimensions6-1/2 in OD
Effective Area Clamped20.6 sq-in
Extended Height24.641 in
FunctionDouble Acting/Hydraulic Return
Maximum Force100 ton
Oil Capacity Clamped206 cu-in
Oil Capacity Unclamped96 cu-in
Pressure Rating10000 psi
Retracted Height14.641 in
SeriesR Series
Stroke Length10 in
TypeHigh Tonnage
Line Drawing
